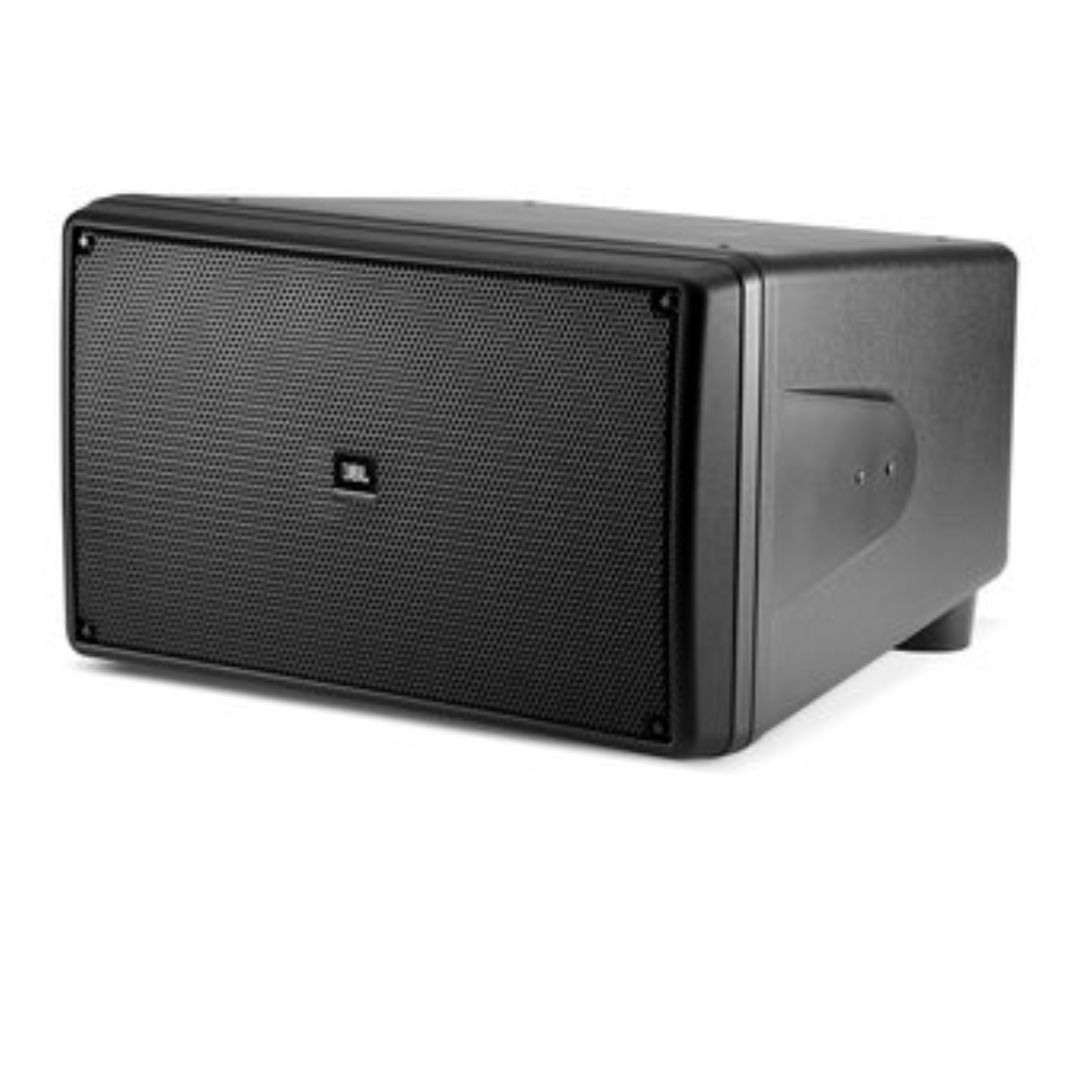

The Control SB2210 is a versatile subwoofer designed for a wide range of sound system applications, offering robust low-frequency reinforcement in a compact, high-output package. Its outdoor-capable design makes it suitable for various environments, while its internal angled baffle ensures a large port opening and compact front dimensions without compromising the size of the driver. The result is a subwoofer that delivers warm, punchy low-end sound with exceptional performance.
Equipped with a 250 mm (10 inch) diameter low-frequency driver, the Control SB2210 features a long-excursion design that extends its low-frequency range. The driver utilizes a woven fiberglass cone for durability, while the highly damped butyl rubber surround and linear suspension spider design ensure clean sound quality with reduced distortion. High-temperature anodized aluminum voice coil former, voice coil wire, and adhesive contribute to stable performance even under prolonged high-power conditions. Additionally, an FEA-optimized motor construction minimizes harmonic distortion, and an aluminum conductive ring on the pole post further reduces harmonic distortion.
The subwoofer comes with four feet for easy floor or shelf placement and includes thirteen M6 insert points for flexible mounting options. It can be suspended using forged shoulder eyebolts (with included bevel washers) or mounted to a wall or ceiling with the optional MTC-210UB U-Bracket. Available in black or white (Control SB2210-WH) and paintable, the cabinet features a thermoset composite-coated grille that withstands UV exposure, humidity, and direct water contact. The grille is backed with materials that, while acoustically transparent, prevent water intrusion into the cabinet.
Specifications
**Frequency Range (-10 dB):**
– 38 Hz – 500 Hz
**Frequency Response (-3 dB):**
– 48 Hz – 95 Hz
**Power Rating:**
– Continuous Pink Noise: 500W (2000W peak) for 2 hrs
– Continuous Program: 400W (1600W peak) for 2 hrs
– Continuous Pink Noise: 1000W for 100 hrs
**Maximum Input Voltage:**
– 60.0 VRMS (2 hrs), 120V peak
**Sensitivity:**
– 95 dB, 1W @ 1m in half-space (average 50 – 90 Hz)
**Max SPL:**
– 122 dB in half-space
**Nominal Impedance:**
– 8Ω
**Minimum Impedance:**
– 7.2Ω at 160 Hz
**Recommended Filter:**
– 45 Hz, 24 dB/oct high-pass filter
**Transducers:**
– **Low Frequency Drivers:** Two 250 mm (10 inch) LF drivers
– Long-excursion design
– Woven fiberglass cone
– Highly damped butyl rubber surround
– Linear suspension spider
– High temperature anodized aluminum voice coil former
– High-temp voice coil wire and adhesive
– FEA optimized motor construction
– Aluminum conductive ring
**Physical:**
– **Enclosure Material:** High Impact Polystyrene (HIPS) with 10% glass fill
– Internal 8 mm polyurethane co-mold
– UV-resistant paint on white (-WH) model
– **Grille:** Thermoset composite coated steel, zinc-plated, 3-layer foam backing
**Environmental:**
– IP-45 rating (installed with MTC-PC2 cover)
– Exceeds MilSpec 810 for humidity, salt spray, temperature & UV
– Passes MilStd-202F for salt spray

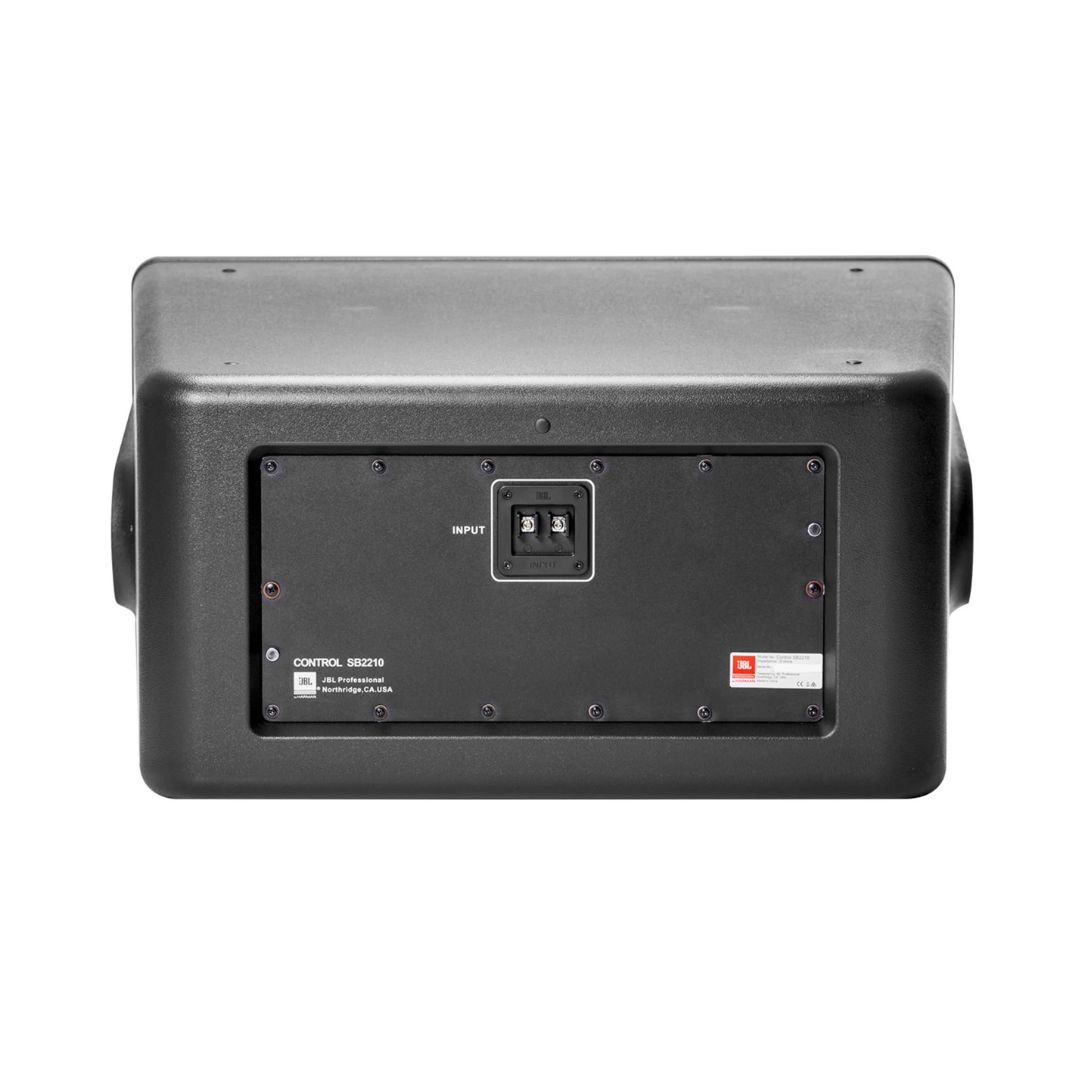

**Terminals:**
– Screw-down terminal strip
– Accepts up to 9 mm outside, 4 mm inside open lug (#6, #8, or #10)
– Bare wire up to 12 AWG/2.5 mm²
– Includes MTC-PC2 and optional MTC-PC3 for additional weather protection
**Agency Rating:**
– ROHS-compliant
– Optional MTC-SBT300 transformer is UL recognized per UL1876
**Colors:**
– Black or white (-WH)
**Dimensions (H x W x D):**
– 355 x 590 x 570 mm (14 x 23.3 x 22.5 in.)
**Net Weight:**
– 23.31 kg (51.4 lb)
**Shipping Weight:**
– 25.85 kg (57.0 lb)
**Included Accessories:**
– 1 x MTC-PC2 input panel cover
– 4 x Floor standing feet
– 4 x Beveled washers
**Optional Accessories:**
– MTC-210UB (&-WH) U-Bracket
– MTC-SBT300 70V/100V Transformer, 300W multi-tap
