JBL – CONTROL 23-1

21,599.00

Categories: ,

The JBL Control 23-1 is a versatile, high-performance 3” two-way speaker designed for a wide range of environments. With a contemporary design, it suits applications like retail stores, restaurants, health clubs, theme parks, educational facilities, and more. The speaker features rich sonic character, wide coverage, and consistent dispersion, making it ideal for foreground and background music or paging. It includes InvisiBall mounting hardware for easy installation and secure positioning, with hidden adjustments to prevent theft. The 3” LF driver has a woven fiberglass cone with a high-temperature Kapton™ voice coil for excellent power handling and durability, while JBL’s WeatherEdge™ enhances weather resistance. The HF driver uses ferro-magnetic fluid and a PEI diaphragm for smooth, high-frequency sound. The speaker’s weather-resistant design, including zinc-plated grilles and optional WeatherMax™ grilles, ensures performance in challenging conditions. It handles up to 50W continuous pink noise and 100W program power, with a maximum SPL of 103 dB.

Whatsapp Us!

Enquiry Now

The JBL Control 23-1 is a compact yet powerful two-way speaker designed for diverse indoor and outdoor applications where high-quality audio and aesthetic versatility are required. Featuring a 3-inch speaker system, the Control 23-1 delivers rich sound with wide coverage and consistent dispersion, making it suitable for environments such as retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality venues, music cafes, and leisure settings.

One of the standout features of the Control 23-1 is its innovative InvisiBall mounting system, which simplifies permanent installation. This unique mounting hardware allows for both vertical and horizontal rotation adjustments without the need to remove the grille, thanks to hidden access behind the logo badge. This design not only facilitates ease of installation but also offers enhanced theft deterrence. Additionally, integrated M6 mounting points support optional U-brackets, adding flexibility to installation options.

The Control 23-1’s design ensures both durability and exceptional sound quality. The low-frequency driver utilizes a woven fiberglass cone combined with a pure butyl rubber surround, providing robust performance and weather resistance. The high-temperature Kapton™ voice coil former and voice coil wire contribute to excellent sensitivity and power handling, ensuring reliable performance even in long-term high-power scenarios. JBL’s WeatherEdge™ technology, a seamless rubberized extension of the woofer surround, adds an extra layer of protection to critical transducer components.

The speaker’s cone geometry is optimized to deliver smooth frequency response and consistent off-axis performance, supported by an FEA-optimized motor construction and linear suspension spider that help reduce harmonic distortion. For the high-frequency driver, a low-viscosity ferro-magnetic fluid enhances voice coil cooling, which extends the speaker’s power handling capabilities. The softened PEI diaphragm ensures pure and smooth high-frequency sound, while the lightweight Kapton™ voice coil former improves durability and extends high-frequency response.

The Control 23-1 is built to withstand harsh environmental conditions. Its cabinet is constructed from high-impact polystyrene (HIPS) and painted with UV-resistant paint on the white version (-WH) to prevent fading. The grille is highly zinc-plated and coated with durable TGIC polyester powder coating for rust resistance. For particularly challenging environments, the optional MTC-23WMG-1 WeatherMax™ grille can be used to protect against driving rain. The speaker’s weather-capable screw-down terminals and optional MTC-PC2 and MTC-PC3 panel covers provide additional protection, ensuring a watertight seal when used with appropriately rated cables.

The Control 23-1 is capable of handling 50 watts of continuous pink noise (100 watts program), with a maximum SPL of 103 dB, thanks to its high sensitivity and power handling capacity. It also includes a built-in 15-watt 70V/100V multi-tap transformer, allowing for seamless integration into distributed speaker lines. This makes the Control 23-1 a versatile choice for both foreground and background music applications, as well as paging needs.

In summary, the JBL Control 23-1 combines high performance, durability, and installation flexibility, making it a superior choice for a variety of demanding audio environments.

Specifications

Frequency Range (-10dB) 70 Hz to 20 kHz
Frequency Response (±3 dB) 95 Hz – 19 kHz
Power Rating 100W Continuous Program (2 hrs)50 W (200W peak), Continuous Pink Noise (2 hrs) 40 W (160W peak) Continuous Pink Noise (100 hrs)
Maximum Input Voltage 17.2 V RMS (2 hrs), 34.4 V peak
Maximum SPL (1m) 103 dB ave. Continuous Pink Noise (109 dB peak)
Sensitivity 86 dB, 1W/1m (ave. 100 Hz – 10 kHz)
Coverage Angle 100°H x 100°V
Directivity Factor (Q) 5.8 (averaged 1kHz – 16kHz)
Directivity Index (DI) 7.2 dB (averaged 1kHz – 16kHz)
Impedance 8 ohms (THRU setting)
Crossover Type 2nd order low-pass, 2nd order high-pass
Transformer Taps 70V: 15W, 7.5W, 3.7W, 1.8W100V: 15W, 7.5W, 3.7W Insertion Loss <0.43 dB at any tap settingThru Setting: 8Ω nominal
Recommended ProtectiveHigh-Pass 70 Hz high-pass (24 dB/oct) (for 8Ω operation and for all 70V/100V taps settings).
Drivers LF: 76 mm (3.0 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp Kapton™ voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
HF: 13 mm (0.5 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.
Enclosure High Impact Polystyrene (HIPS), painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
Grille Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-23WMG-1 (&-WH) available with WeatherMax™ multi-layer foam and tight-weave mesh vapor barrier backing.
Mounting Hardware InvisiBall™ wall-mounting system included. Two 6 mm attachment points (on top and bottom) for optional MTC-23UB-1 (&-WH) U-bracket. Secondary safety attachment loop point on back panel.
Outdoor Capability IP-44 per IEC529 (IP-55 when installed with the optional MTC-23WMG-1 WeatherMax™ grille and either MTC-PC2 or MTC-PC3 panel cover.) Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray. Optional MTC-23WMG-1 WeatherMax™ grille for breaking up driving rain and for especially difficult environments.

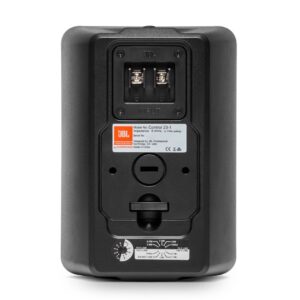

Input Connectors Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). Optional MTC-PC2 and MTC-PC3 protective panel covers available to provide sealed entrance for additional weather protection.
Agency Rating ROHS-compliant; Transformer UL Recognized per UL1876
Colors Black (RAL9004) or white (-WH, RAL9016)
Dimensions (H x W x D) 200 x 141 x 111 mm (7.9 x 5.6 x 4.4 in); 141 mm (5.6 in) deep total when mounted on InvisiBall wall-mount bracket.
Net Weight 1.8 kg (4.0 lbs)
Shipping Weight 3.85kg (8.5 lbs) for the pair-pack (for 2 speakers) 12.0kg (26.5lbs) for the master-pack (for 6 speakers)
Included Accessories InvisiBall™ wall-mounting system), 4 mm x 80 mm hex key
Optional Accessories MTC-23UB-1 – Yolk-type U-bracket (&-WH) MTC-23WMG-1 – WeatherMax grille with backing (&-WH) MTC-23CM – Ceiling-Mount InvisiBall adapter (&-WH)
