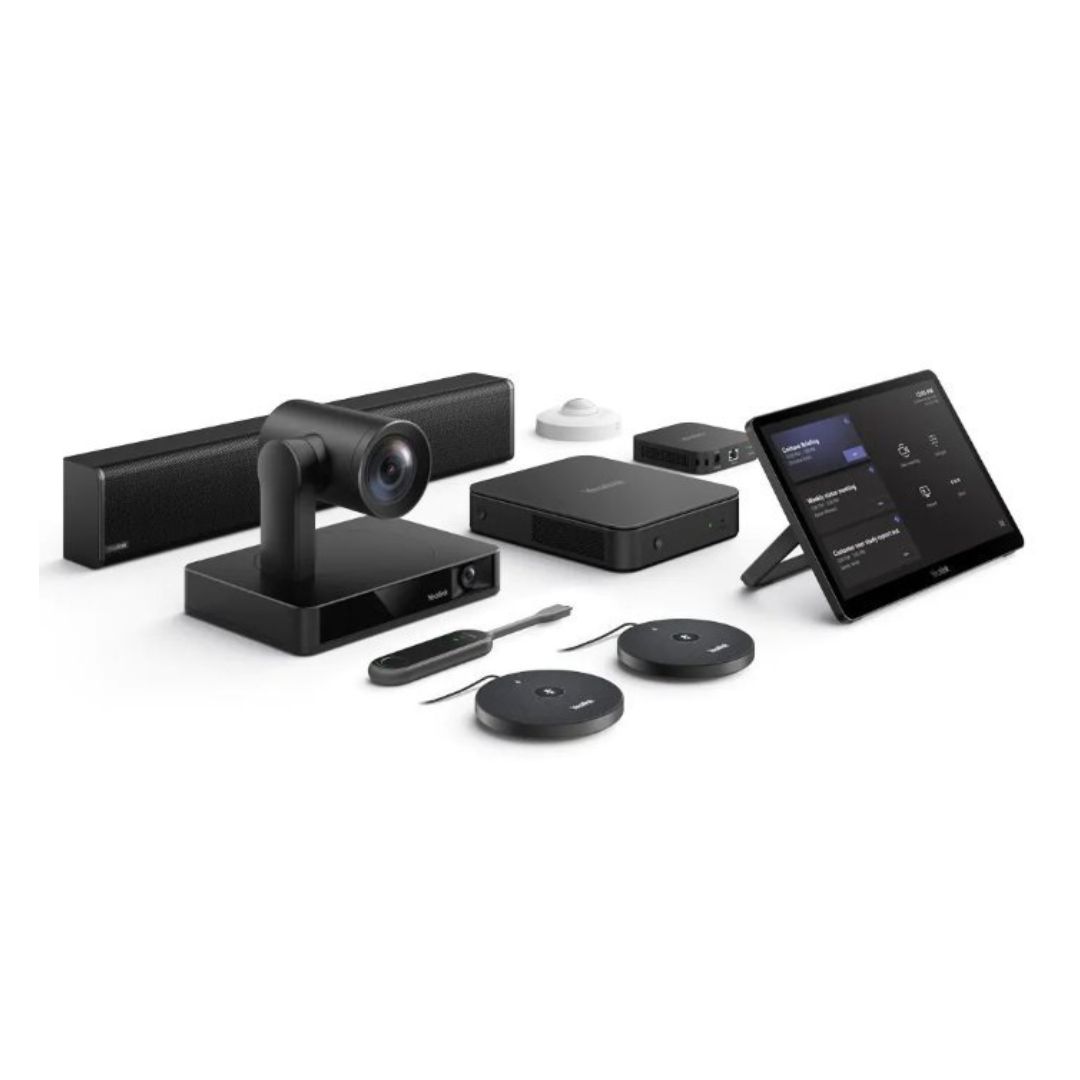

Yealink MVC860-C5-000 – Microsoft Teams Rooms System for Medium and Large Rooms

₹703,599.00

Categories: , , Tags: ,

Yealink MVC860 Key Features

  • MINI-PC MCore Pro:
    • High-performance with aesthetic design
    • Three HDMI ports with EDID support for flexible deployment
  • MTouch Plus Touch Panel:
    • 11.6-inch ultra-large, narrow frame touch panel
    • Supports simultaneous multi-panel meeting control
    • Supports third-party screen sharing
  • UVC86 Intelligent PTZ Camera:
    • 4K video output with 12x optical zoom
    • Auto-frame, speaker tracking, and presenter tracking features
    • Provides clear, lossless images and smooth meeting experiences
  • RoomSensor:
    • Enables stable wake-up experiences and conference room environment detection

Overall, the Yealink MVC860 system ensures a seamless, intelligent, and fully controlled meeting experience, making it ideal for professional conference environments.

Key Features and Benefits

Intelligent Tracking, Free Your Hands

  • The Yealink UVC86 intelligent PTZ camera offers Auto-framing, Speaker Tracking, and Presenter Tracking.
  • Speaker Tracking includes region trigger and gesture ON/OFF for versatile use.
  • Equipped with a plug-in controller for easy switching among up to 9 preset positions and tracking modes.
  • Supports 4K video output and 12x optical zoom for clear, detailed images.

Big and Flexible Conference Control Experience

  • The MTouch Plus, an 11.6-inch narrow-frame touch panel, supports simultaneous multi-panel conference control.
  • Allows flexible panel deployment for full control of the conference process.

Flexible Audio, Flexible Connectivity

  • Choose between wired (VCM35, VCM38) and wireless (VCM36-W, CPW65) microphones for various conference room setups.
  • Features dynamic noise and reverberation elimination for clear audio.
  • Supports integration with third-party audio equipment from Biamp, Nureva, Shure, and YAMAHA.

Convenient Screen Sharing and Fast BYOD Solution

  • Supports WPP30 wireless content sharing and third-party solutions for easy screen sharing.
  • Enables wireless BYOD function with WPP30, providing 1080P/30 frames resolution for content sharing.
  • Future versions will enhance these features.

Simple to Deploy, Easy to Use

  • The system is designed for easy extension and stable cable management with VCH and USB ports.
  • Uses a single CAT5e cable for data transmission and power supply, simplifying deployment and reducing costs.

Manage Your Devices Remotely

  • Supports Yealink Device Management Platform/Cloud Service for remote management, monitoring, configuration, updates, and diagnostics of all Yealink audio and video devices.

Specifications

Package Content

  • MCore Pro, Gen-3 Mini-PC
  • MTouch Plus, Gen-3 touch panel
  • UVC86 USB PTZ camera
  • RoomSensor
  • Optional: MSpeaker II, VCM35 Array microphone, VCM36-W Wi-Fi wireless microphone, VCM38 Ceiling array microphone, CPW65 DECT wireless microphone, WPP30 wireless presentation pod

Preload

  • Windows 11 IoT Enterprise X64 with License
  • Microsoft Teams Rooms App (supports Skype for Business and Teams meetings)
  • Yealink RoomConnect

MCore Pro, Gen-3 Mini-PC

  • 11th Gen Intel® Core i5
  • Memory: 8 GB (2 x 4GB)
  • Storage: 128 GB SSD
  • 3x HDMI video output with CEC supported
  • TPM2.0, Kernel DMA, EDID
  • Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
  • Bluetooth: BT 5.2
  • Ports: 1 x Yealink MTouch port (RJ45), 4 x USB 3.0 Type-A, 1 x 10/100/1000M Ethernet port, 1 x Power port, 1 x Security lock slot, Integrated cable management

MTouch Plus

  • 11.6-inch narrow bezel IPS display
  • 1920 x 1080 video resolution
  • Adjustable angle support frame (50° ~ 180°)
  • Wired and wireless content sharing (with WPP30)
  • Multi-screen control support
  • Third-party screen sharing support
  • External PD power supply support
  • HDMI/USB-C video input
  • Deployment options: desktop, desktop fixed, wall-mounted

RoomSensor

  • Detection angle: 120°, Adjustable: ±20°
  • Operating temperature: 0-40℃
  • Operating humidity: 10-95%
  • Power: Battery-powered, 4-year life

UVC86 USB PTZ Camera

  • 4K Sensor
  • 20.4 × HD zoom (12x optical, 1.7x digital)
  • Viewing angles: 90° DFOV, 81° HFOV, 50° VFOV (Telephoto); 120° DFOV, 110° HFOV, 78° VFOV (Panoramic)
  • Features: Auto-framing, Speaker tracking, Presenter tracking (area trigger, gesture control), Multi-focus, Picture-in-picture, 9 preset positions, Wireless BYOD support
  • Rotation: Horizontal 200°, Vertical 130°
  • Ports: 1 x HDMI output, 1 x Yealink microphone port (RJ-45), 1 x USB 3.0 Type-B port, 1 x USB 2.0 Type-A Port, 1 x Power Port, 1 x Security Lock, 1 x Reset Hole

MSpeaker II (optional)

  • Frequency response: 106Hz-20 KHZ
  • Max Loud Pressure level: 88±3dB@8W / 1M
  • Sensitivity: 79±3dB@1W/1M
  • S/N: ≥70dB
  • 3.5mm linear input interface

VCM35 (optional)

  • Built-in three-microphone matrix, 360° omnidirectional pickup
  • Signal-to-noise ratio: 60dB SPL@1KHz, A-weighted
  • Loudest Pressure level: 115dB@1KHz, THD<3%
  • Equivalent noise: -105dBFS(A)
  • Dynamic range: 81dBFS
  • Sensitivity: -45dB±2
  • Frequency response: 100Hz-8KHz
  • Full duplex range: 2m radius
  • Pickup radius: 5m
  • Star cascading support
  • Two-color LED capacitive touch mute key

VCM38 (optional)

  • Built-in six-mic matrix, 360° omnidirectional pickup
  • Signal-to-noise ratio: 65dB SPL@1KHz, A-weighted
  • Max sound pressure level: 110dB@1KHz, THD<3%
  • Equivalent Noise: -110dBFS(A)
  • Dynamic Range: 81dBFS
  • Sensitivity: -45dB±2
  • Frequency Response: 100Hz-8KHz
  • Full duplex range: 2m radius
  • Pickup radius: 5m
  • Cascading support: Up to 8 units
  • Two-color LED capacitive touch mute key

VCM36-W (optional)

  • Built-in three-wheat matrix, 360° omnidirectional pickup
  • Signal-to-noise ratio: 60dB SPL@1KHz, A-weighted
  • Loudest Pressure level: 115dB@1KHz, THD<3%
  • Equivalent noise: -105dBFS(A)
  • Dynamic range: 81dBFS
  • Sensitivity: -45dB±2
  • Frequency response: 100Hz-8KHz
  • Full duplex range: 2m radius
  • Pickup radius: 6m
  • Battery: 2450mAh with wireless charging, 7 days standby, up to 12 hours continuous use
  • Two-color LED capacitive touch mute button

CPW65 (optional)

  • 360° omnidirectional pickup
  • Signal-to-noise ratio: 65dB SPL@1KHz, A-weighted
  • Loudest Pressure level: 110dB@1KHz, THD<3%
  • Equivalent noise: -110dBFS(A)
  • Dynamic range: 81dBFS
  • Sensitivity: -32db±2
  • Frequency response: 100Hz-8KHz
  • Full duplex range: 2m radius
  • Pickup radius: 6m
  • Pairing with Yealink WDD60
  • Two-color LED capacitive touch mute button

Package Features

  • N.W/CTN: 6.88 kg
  • G.W/CTN: 7.54 kg
  • Carton Meas: 420mm x 275mm x 387mm
