Yealink A10-025 Collaboration Bar for Huddle Rooms


The Yealink A10-025 is a compact video conferencing solution designed for huddle spaces and home offices. It includes the MeetingBar A10, the CTP18 collaboration touch panel for easy meeting controls, and the WPP30 for wireless content sharing and BYOD (Bring Your Own Device) capabilities.

Together, the A10-025 provides a comprehensive video conferencing solution that offers exceptional audio and video quality, intuitive controls, and seamless content sharing.

The A10-025 is a compact video conferencing solution ideal for huddle spaces and home offices. It includes the MeetingBar A10, the CTP18 collaboration touch panel for easy meeting controls, and the WPP30 for wireless content sharing. Together, these components provide a comprehensive video conferencing experience with exceptional audio and video quality, intuitive controls, and seamless content sharing.

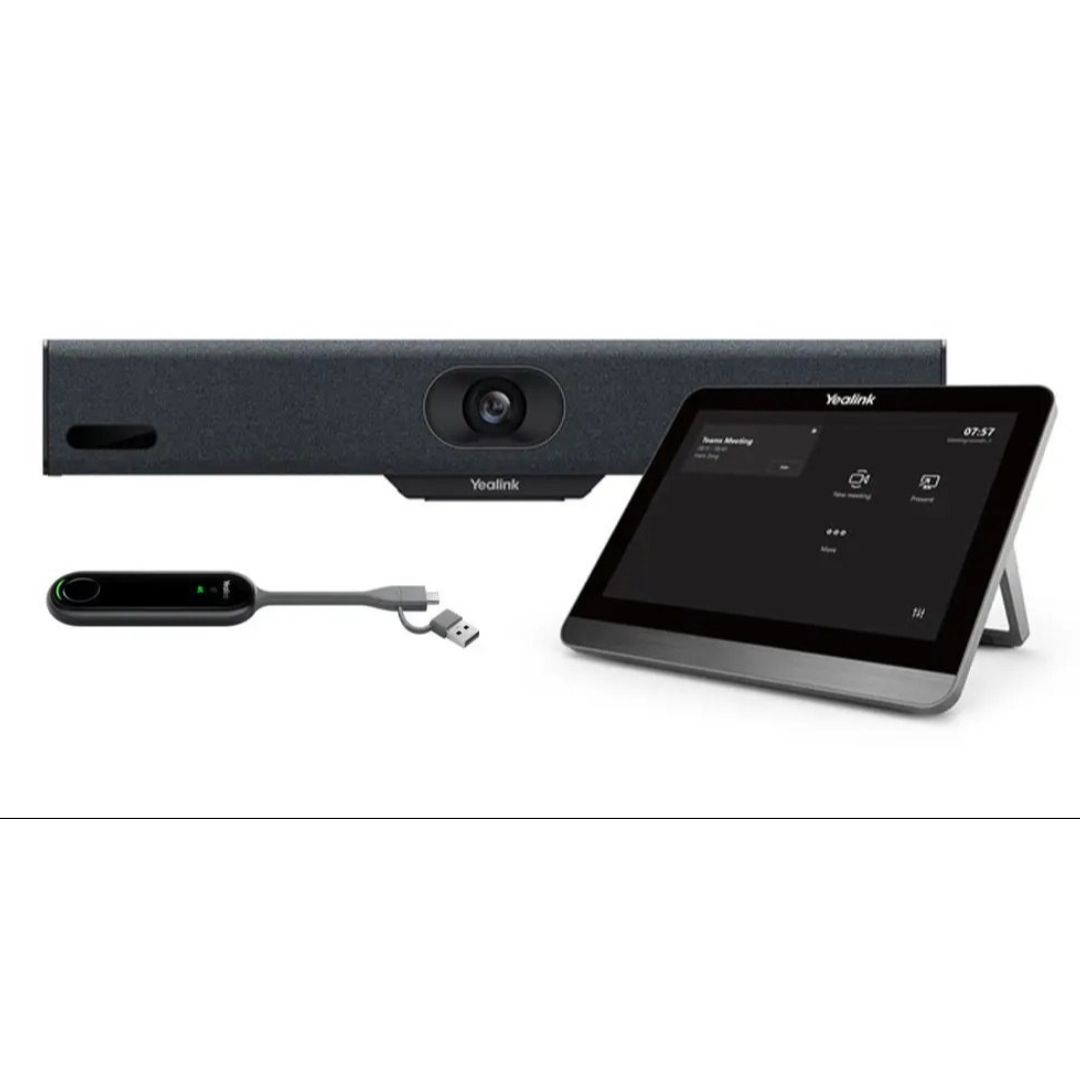

Yealink A10-025 Video Conferencing Solution


  1. MeetingBar A10
  2. CTP18 Collaboration Touch Panel
  3. WPP30 Wireless Presentation Pod

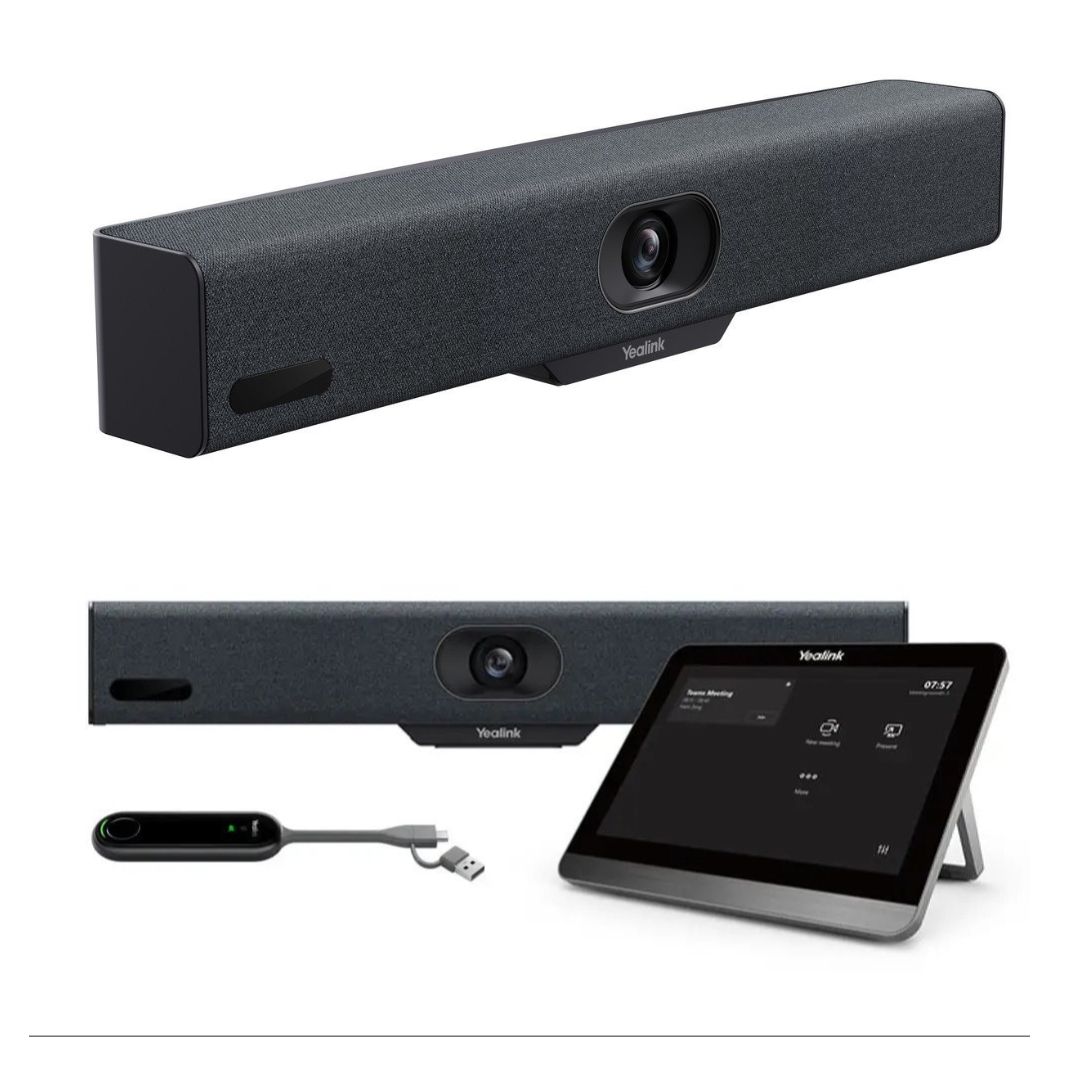

A10 MeetingBar: Compact, Powerful Collaboration Bar

The A10 MeetingBar is designed for small groups or individual users seeking a powerful conferencing solution. Despite its compact size, it offers advanced features:

  • 8-megapixel 4K Camera: With a 120° Field of View (FoV).
  • Speaker Tracking: Intelligently tracks the presenter.
  • Auto Framing: Automatically adjusts to include all participants in the view.
  • Audio Quality: Equipped with 8-MEMS microphone arrays, speakers, and advanced acoustic algorithms for crystal-clear, full-duplex voice experience.
  • Connectivity: Integrated dual-band Wi-Fi, Bluetooth, and audio enhancements such as echo cancellation and Yealink Noise-Proof Technology.

CTP18 Collaboration Touch Panel – Easy Meeting Control

The CTP18 Collaboration Touch Panel features an intuitive and user-friendly interface that allows users to manage meetings effortlessly. With a few taps, you can:

  • Join or end a meeting
  • Mute or unmute participants
  • Control the camera
  • Adjust various settings

WPP30 Wireless Presentation Pod – Trouble-Free Sharing

The WPP30 Wireless Presentation Pod enhances the A10 MeetingBar by enabling seamless connection of your laptop or mobile device to any display or projector. This makes it easy to share your ideas with your audience using advanced wireless technology.


The A10-025 is fully compatible with a wide range of video conferencing platforms, including Zoom, Microsoft Teams, and Google Meet. This versatility makes it a perfect solution for businesses or individuals looking to streamline communication and collaboration workflows.

Enhance Collaboration and Productivity

Whether you’re hosting a small team meeting or a large conference, the Yealink A10-025 Video Conferencing Solution is the ideal choice for boosting collaboration and productivity in your organization.

Platform Supported



  • Camera
    • 4K Camera with resolutions: 1080p30, 720p30
    • 120° DFoV, 105° HFoV
    • 4x e-PTZ camera
    • Electric privacy shutter
    • Intelligence Features: Auto Framing, Speaker Tracking, Smart Gallery (Zoom Only)
  • Audio
    • Built-in 8 MEMS microphone array
    • Built-in 5W high fidelity speaker
    • Advanced AI Noise Cancellation Algorithm
    • Full-duplex, Echo cancellation Technology
    • Speaker volume: 88db SPL@1W, 93db SPL@3W both +/-2db at 0.5m
    • Sensitivity: 88db SPL@1W, at 0.5m
  • Operating System
    • Android 11
  • Meeting Features
    • Calendar, One-click join
    • Meeting collaboration: Content sharing
    • Meeting control: Add participants, Hold/Resume, Camera On/Off, Mute/Unmute, Volume Up/Down, Hang up
    • Teams Edition: Microsoft TAC, Proximity join
    • Zoom Edition: Zoom DM, Direct sharing
  • Video Standard and Network Suitability
    • Video codecs: H.264 High profile, H.264 SVC, H.264
  • Network and Security Features
    • Built-in dual-band Wi-Fi (2.4 GHz/5 GHz)
    • Built-in Bluetooth 4.2
    • IPv4 and IPv6, DHCP/static IP
    • HTTP/HTTPS web server
    • TLS 1.2/1.3, AES 256-bit encryption
    • QoS: 802.1p/q, Diff-serv
    • VLAN, LLDP, IEEE802.1X
    • Network diagnosis: Ping, Trace route
    • Time and date synchronization using SNTP
    • Built-in certificate
  • Connections
    • 1 x HDMI output (CEC supported)
    • 1 x USB-A, 1 x USB-C for content sharing
    • 1 x 10 M/100 M/1000 M Ethernet port
    • 1 x Yealink VCH port (RJ-45)
    • 1 x Power port
    • 1 x Security lock slot
    • 1 x Reset slot
  • Other Physical Features
    • Power Adapter: AC 100-240 V Input and DC 48 V/0.7 A Output
    • USB Output: 5 V 0.5 A
    • Power consumption (PSU): Idle < 10 W; Normal operating: 10.5 W; MAX: 14 W
    • Dimension (W.D.H): 380 mm x 68 mm x 82 mm
    • Operating humidity: 10-95%
    • Operating temperature: 0-40°C
    • Storage temperature: -30 to +70°C
  • MeetingBar A10 Package
    • Package contents: MeetingBar A10 endpoint, 3 m Ethernet cable, 1.8 m HDMI cable, Mounting Bracket and Accessories, Power adapter, Quick Start Guide
    • Controller Device (optional): CTP18 Touch Console, VCR11 Remote Control
    • Sharing & BYOD Device (optional): WPP30 Wireless Presentation Pod, VCH51 Adapter
  • Device Management
    • Yealink Https Web Portal
    • Yealink Device Management Platform
    • Yealink Management Cloud Service
    • Teams Admin Center
    • Zoom Device Management
