JBL - CONTROL 67 P/T

JBL – CONTROL 67 P/T

₹58,399.00

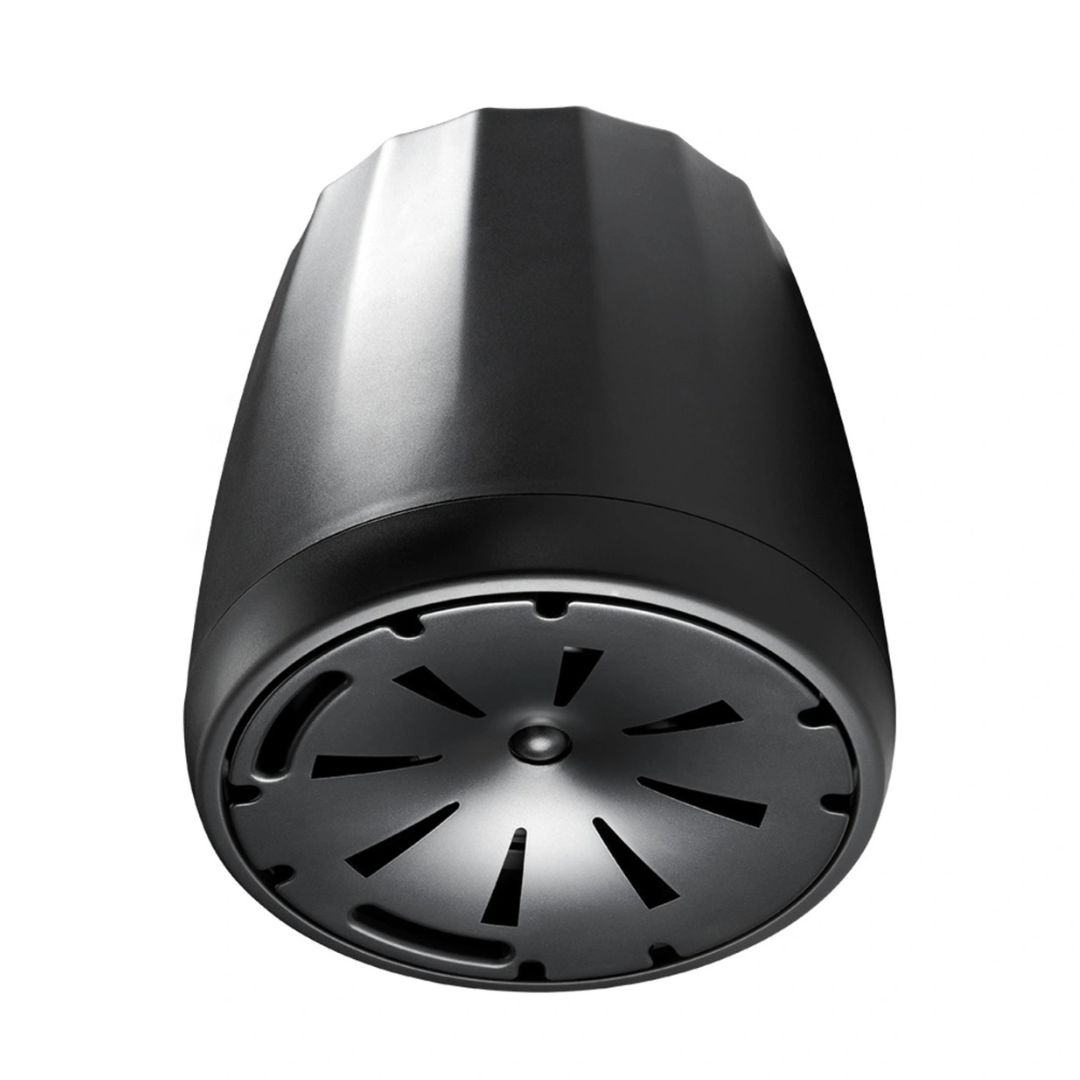

The JBL Control 67P/T is a high-output, full-range pendant loudspeaker designed for consistent, wide coverage in open-ceiling environments. Utilizing JBL’s patent-pending Radiation Boundary Integrator® (RBI) technology from the VERTEC™ Series, it features a large 280 mm (11 in) waveguide and coaxially-mounted drivers that ensure even sound distribution and high-fidelity performance. Its 120° wide coverage pattern allows fewer speakers to be used, reducing system costs while maintaining excellent audio quality. Ideal for spaces such as retail stores, restaurants, hotels, casinos, and convention centers, the Control 67P/T combines superior sound with stylish design and ease of installation. It includes a single-point mounting system and comes with two hanging cable systems, featuring 4.5 m (15 ft) galvanized steel wire ropes for adjustable suspension height, ensuring secure and flexible installation.

Whatsapp Us!

Enquiry Now

The Control 67P/T is a high-performance, full-range, two-way pendant loudspeaker designed to deliver exceptional sound quality and consistent wide coverage in various open-ceiling environments. This speaker is ideal for applications such as retail spaces, restaurants, hotels, casinos, fitness centers, convention centers, exhibit spaces, conference rooms, atriums, museums, and transit centers where a pendant form factor is desired.

At the heart of the Control 67P/T is JBL’s innovative Radiation Boundary Integrator® (RBI) technology, which is adapted from the advanced VERTEC™ Series of line array loudspeakers. This technology features a large 280 mm (11 in) diameter waveguide combined with strategically placed low-frequency projection apertures. The result is a highly efficient and even distribution of sound across the listening area, ensuring all listeners experience consistent high-fidelity audio. The speaker’s wide 120° coverage pattern allows for fewer units to be used in a given space, effectively reducing the overall cost of the audio installation without compromising on performance.

The Control 67P/T is designed with a focus on excellent sound reproduction and aesthetic appeal. Its wide coverage pattern makes it particularly well-suited for environments with high ceilings or challenging acoustics, where precise audio dispersion is essential. The pendant design not only meets the aesthetic requirements but also facilitates easy installation in open-ceiling applications.

Installation is straightforward thanks to the Control 67P/T’s single-point mounting system. The speaker includes two complete hanging cable systems: one for the main suspension and another for safety. These systems feature extra-long 4.5 m (15 ft) high-tensile galvanized steel wire ropes. Each cable comes with spring clips for secure attachment to the loudspeaker bracket and UL-listed cable fasteners that allow for infinitely adjustable suspension height. This setup ensures that the speaker can be easily and securely installed in a variety of settings.

The Control 67P/T offers exceptional sound quality combined with durability and ease of installation. Its sophisticated design and advanced technology make it a versatile solution for a broad range of audio applications, ensuring reliable performance and consistent sound coverage in both commercial and professional environments.

Specifications

Frequency Range (-10dB) 58 Hz – 18 kHz
Frequency Range (±3 dB) 78 Hz – 16 kHz
Power Rating 75 Watts Continuous Pink Noise Power (with 300 Watts peaks)150 Watts Continuous Program Power
Nominal Sensitivity 90 dB
Coverage Angle 120° conical
Directivity Factor (Q) 5.7
Directivity Index (DI) 7.5 dB
Maximum SPL (1m) 109 dB continuous pink noise, 115 dB peak
Impedance 8 ohms
Transformer Taps 70V: 60W, 30W, 15W & 7.5W100V: 60W, 30W, 15W
Transformer Insertion Loss 0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W
Drivers LF: 165 mm (6.5 in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former
HF: 25 mm (1.0 in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former
Enclosure High impact polystyrene
Grille Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
Outdoor Capability Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.
Input Connectors Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
Suspension Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
Safety Agency Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
Dimensions (H x W x D) 312 mm (12.3 in) diameter x 330 mm (13.0 in) height to top of cabinet. 350 mm (13.8 in) to top of suspension bracket.
Net Weight (each) 5.2 kg (11.5 lbs)
Shipping Weight (pair) 12.3 kg (27 lbs)
Included Accessories Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
Optional Accessories MTC-PC60 top panel / terminal cover
Colors Available in black or white (-WH). Paintable.
