Yealink A20-020: All-in-One Collaboration Bar for Small Rooms with CTP18 Touch Panel

285,000.00

The A20-020 is an all-in-one meeting bar designed for huddles and small spaces. It features an integrated AI-powered camera, 8 MEMS microphone array, and a built-in speaker, offering a compact conferencing solution that reduces space usage and minimizes cable clutter.

This model includes the CTP18 collaboration touch panel, enabling you to control every meeting quickly and effortlessly.

Download Brochure

Yealink A20-020: All-in-One Collaboration Bar for Small Rooms with CTP18 Touch Panel

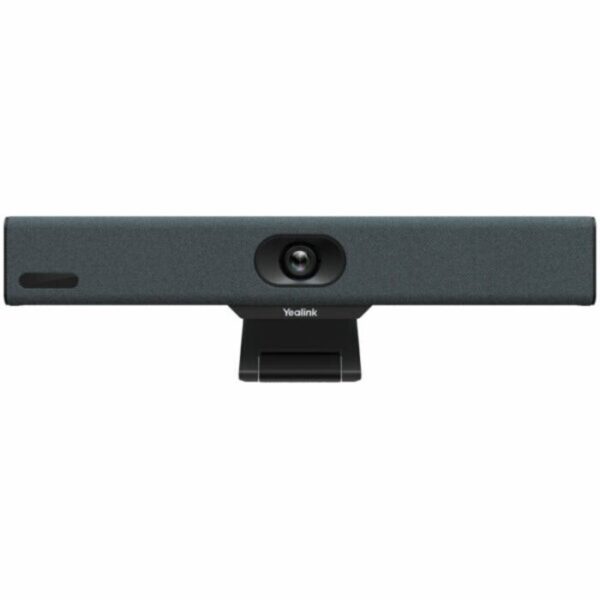

The A20-020 is an all-in-one meeting bar designed for huddles and small spaces, featuring an integrated AI-powered camera, 8 MEMS microphone arrays, and a built-in speaker. This solution reduces space usage and minimizes cable clutter, providing an efficient conferencing experience. It comes with the CTP18 collaboration touch panel for quick and effortless meeting control.

Key Features

20MP Camera:

  • 9x e-PTZ Camera: Provides outstanding video quality.
  • 133° Super Wide-Angle Lens: Ensures comprehensive room coverage.
  • Electric Privacy Lens Cap: Enhances privacy during meetings.

Advanced AI Technology:

  • Auto Framing and Speaker Tracking: Automatically adjusts the view and tracks the speaker for an improved collaboration experience.

Audio Quality:

  • 8 MEMS Microphone Array: Captures clear audio with Yealink’s noise-proof technology.
  • Full-Duplex Audio Mode: Ensures everyone can be heard in great detail.
  • Built-in 5W High-Fidelity Speaker: Delivers immersive sound.

Connectivity:

  • Built-in Bluetooth and Wi-Fi: Supports wireless connections.
  • Dual HDMI Output: Enables dual-screen support.
  • Remote Device Management: Facilitates easy control and setup.

Operating System:

  • Android 9.0: Provides a smooth and responsive user experience.

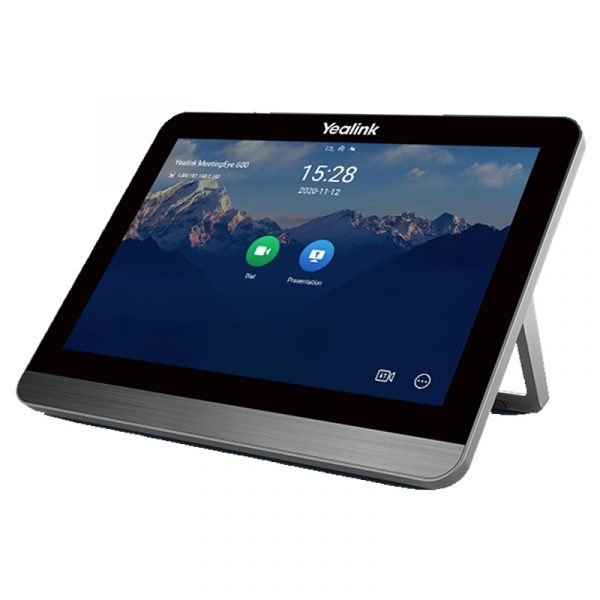

CTP18 Collaboration Touch Panel:

  • User-Centric Interface: Allows users to join and control meetings quickly and effortlessly.
  • Supports WPP30 Wireless Presentation Pod: (WPP30 not included; see A20-025 model).

Additional Features

  • Mounting Bracket and Power Adapter: Included for easy installation.
  • Compatibility: Works with leading UC platforms.

Conclusion

The Yealink A20-020 all-in-one meeting bar is an ideal solution for huddle and small rooms. With its high-quality video and audio capabilities, advanced AI features, and user-friendly CTP18 touch panel, it ensures a seamless and effective collaboration experience.

Platform Supported

Teams
Zoom
BYOD

Specifications

  • Camera:
    • 20 MP with 120° field of view
    • 8x e-PTZ camera, electric privacy shutter
    • Intelligence Features: Auto Framing, Speaker Tracking, Picture in Picture, Multi-focus Framing, Smart Gallery
  • Audio:
    • Built-in 8 MEMS microphone array (6 meters range)
    • Speaker volume: 89db SPL@1W, 95db SPL@4W
    • Yealink Noise Proof Technology, full-duplex, AGC, Echo cancellation
  • Operating System: Android 10.0
  • Meeting Features:
    • Calendar, One-click join
    • Content sharing, Whiteboard
    • Meeting control: Add participants, Hold/Resume, Camera On/Off, Mute/Unmute, Volume Up/Down, Hang up
  • Video Standard and Network Suitability:
    • H.264 codecs, dual-band Wi-Fi, Bluetooth 4.2
    • IPv4/IPv6, DHCP/static IP, HTTP/HTTPS web server
    • TLS encryption, QoS: 802.1p/q, Diff-serv, VLAN, LLDP, IEEE802.1X
  • Ports:
    • 2 x HDMI output (CEC supported)
    • HDMI input (via VCH51 Sharing Kit), 1 x USB 2.0, 1 x Ethernet port
    • 1 x Yealink VCH port (RJ-45), Power port, Security lock slot, Reset slot
  • Physical Features:
    • Power Adapter: AC 100-240V Input, DC 48V/0.7A Output
    • USB Output: 5V/0.5A, Power consumption details
    • Dimensions: 600 mm x 68 mm x 82 mm, Operating humidity: 10 – 90%
    • Operating temperature: 0 – 40°C, Storage temperature: -30 to +70°C
  • Weight:
    • A20-010: N.W/CTN 2.89 kg, G.W/CTN 3.48 kg
    • A20-020: N.W/CTN 4.93 kg, G.W/CTN 5.65 kg
    • A20-025: N.W/CTN 5.39 kg, G.W/CTN 6.11 kg
  • MeetingBar A20 Package Contents:
    • MeetingBar A20 endpoint, Ethernet cable, HDMI cables
    • Mounting Bracket, TV-Clip Mount, Power adapter, Quick Start Guide
    • Optional Controllers: CTP18 Touch Panel, VCR20 Remote Control, VCR11 Remote Control
    • Optional Content Sharing: VCH51 Sharing Kit (HDMI/USB-C), WPP20/WPP30 Wireless Presentation Pod
