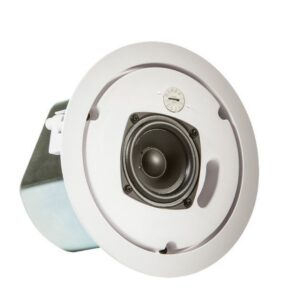

JBL Ceiling Speaker – Model No. Control 12C/T
The JBL Control 12C/T is a high-performance ceiling speaker designed for a variety of audio applications, including paging and background music in commercial and residential settings. As part of JBL’s renowned Commercial Series, this model combines exceptional sound quality with ease of installation, making it an ideal choice for businesses, offices, restaurants, retail spaces, and more.
Key Features and Specifications
The Control 12C/T is equipped with a 76 mm (3 inch) full-range cone driver, capable of delivering clear and detailed sound across a wide frequency range. This driver is housed in a vented baffle, which is paintable and made from UV-resistant UL94-V0 material, ensuring durability and long-lasting performance. The baffle is designed to withstand various environmental conditions, making it suitable for both indoor and outdoor installations.
One of the standout features of the Control 12C/T is its high sensitivity, which allows the speaker to produce maximum sound levels even at lower power settings. This characteristic is particularly beneficial in paging and background music applications, where clear and intelligible sound is essential. The speaker’s frequency response ranges from 68 Hz to 17 kHz, providing a balanced audio output that covers a wide spectrum of sounds, from deep bass to crisp highs. Additionally, the speaker offers a wide 130° coverage angle, ensuring that the sound is evenly distributed across the listening area, minimizing dead spots and providing a consistent audio experience for all listeners.
The Control 12C/T is designed for flexibility in various installation scenarios. It features a combined 70V/100V transformer and a low impedance direct operation, allowing it to be used in both distributed audio systems and direct 8-ohm applications. This versatility is further enhanced by the multi-tap transformer, which includes settings for 20 watts at 8Ω and 15 watts in 70V/100V systems. These settings enable the installer to optimize the speaker’s output according to the specific needs of the installation, whether it’s for providing background music in a large retail space or delivering clear announcements in an office building.
The speaker comes with a preattached blind-mount backcan, which simplifies the installation process. This feature allows the speaker to be quickly and securely mounted into the ceiling without the need for additional brackets or mounting hardware. The backcan also helps to protect the speaker’s internal components and enhances its low-frequency performance by providing an enclosed space for the sound waves to resonate.
The Control 12C/T is available in both black and white finishes, allowing it to blend seamlessly with a variety of interior designs. The paintable baffle provides additional customization options, enabling the speaker to match the color scheme of any environment. This aesthetic flexibility makes the Control 12C/T a discreet and visually appealing choice for any setting.
Applications and Use Cases
The JBL Control 12C/T ceiling speaker is ideal for a wide range of applications. In commercial environments, it excels in providing clear and consistent sound for background music and paging systems. Its wide coverage angle and high sensitivity make it particularly suitable for large spaces, such as retail stores, shopping malls, hotels, and conference centers, where even sound distribution is crucial. The speaker’s ability to handle both 70V/100V and low impedance configurations makes it a versatile choice for complex audio installations that require flexibility and scalability.
In office settings, the Control 12C/T can be used to deliver background music, public announcements, and emergency notifications. Its discreet design ensures that it integrates seamlessly into the ceiling, maintaining the aesthetic integrity of the space while providing reliable audio performance. The speaker’s paintable baffle and choice of finishes also make it an excellent option for corporate environments where design and aesthetics are important.
For residential applications, the Control 12C/T can be used to provide high-quality audio in home theaters, living rooms, kitchens, and other living spaces. Its full-range driver and wide frequency response make it suitable for a variety of audio content, from music to movies. The speaker’s easy installation process and versatile design ensure that it can be incorporated into any home audio system with minimal effort.
Conclusion
The JBL Control 12C/T ceiling speaker is a versatile and high-quality audio solution designed to meet the needs of a wide range of commercial and residential applications. Its combination of a 76 mm full-range driver, high sensitivity, wide frequency response, and flexible installation options make it an ideal choice for anyone looking to enhance their audio experience. Whether used for background music, paging, or home audio, the Control 12C/T delivers exceptional sound quality and reliability, backed by JBL’s reputation for excellence in audio engineering. With its durable construction, easy installation, and aesthetic flexibility, the Control 12C/T is a smart investment for any audio installation project.
