FS Outdoor series PH-4

Excellent Display Effect, True-to-Life Presentation

Super high contrast ratio by patented mask and ultra-uniform color bring your content to life.

LED video wall with true-to-life details
multiple protection for outdoor LED display board

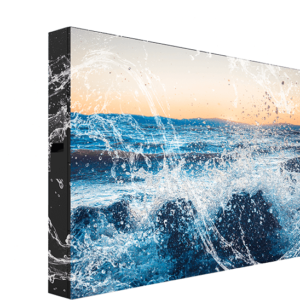

Multiple Protections, Super High Stability

Full-waterproof modules are anti-UV to avoid deformation. IP65/IP54 high protection facilitates long-time stable running even under harsh weather.

Dual Cooling Channels, Longer Working Hours

Modules are separated from the power supply to double heat dissipation channels, which helps to extend the service lifespan to maximize the investment returns for you.

LED billboard with excellent heat dissipation
led display with super-wide viewing angle

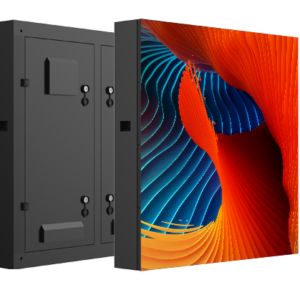

Wider Viewing Angle, More Eyeballs Covered

Super-wide 160° viewing angle captures more attention from viewers to maximize the advertisement value.

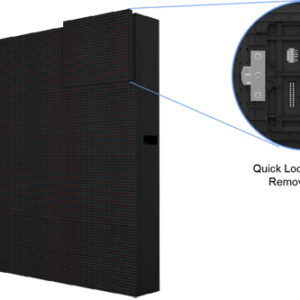

Convenient Serviceability, Greater Flexibility

By supporting front and rear installation and maintenance, FS LED panel can be spliced into L-shape, cylinder, concave and other shapes to match multi-occasion applications.

smd screen with convenient installation and maintenance
LED creative glasses-free 3D display
Patented Technology, Revolutionary Creativity

Patented Curved Surface Display Technology smoothens the broadcasting and facilitates the stereoscopic sense of delivered content to achieve creative presentation like naked-eye 3D display.

Model FS4 FS5 FS6 FS8 FS10
Pixel Pitch(mm) 4 5 6 8 10
Panel Resolution(Pixel) 240*240 192*192 160*160 128*128 96*96
Panel Size W*H*D(mm) 960*960*153 960*960*153 960*960*153 1024*1024*153 960*960*153
Panel Weight(kg/m²) ≤37
Brightness(nits) 6000~8000(Optional)
Serviceability Rear Front/Rear Front/Rear Front/Rear Rear
* Please kindly note that product specifications may vary according to different configurations. All rights reserved.
