AMX FG1010-312-01

₹201,699.00

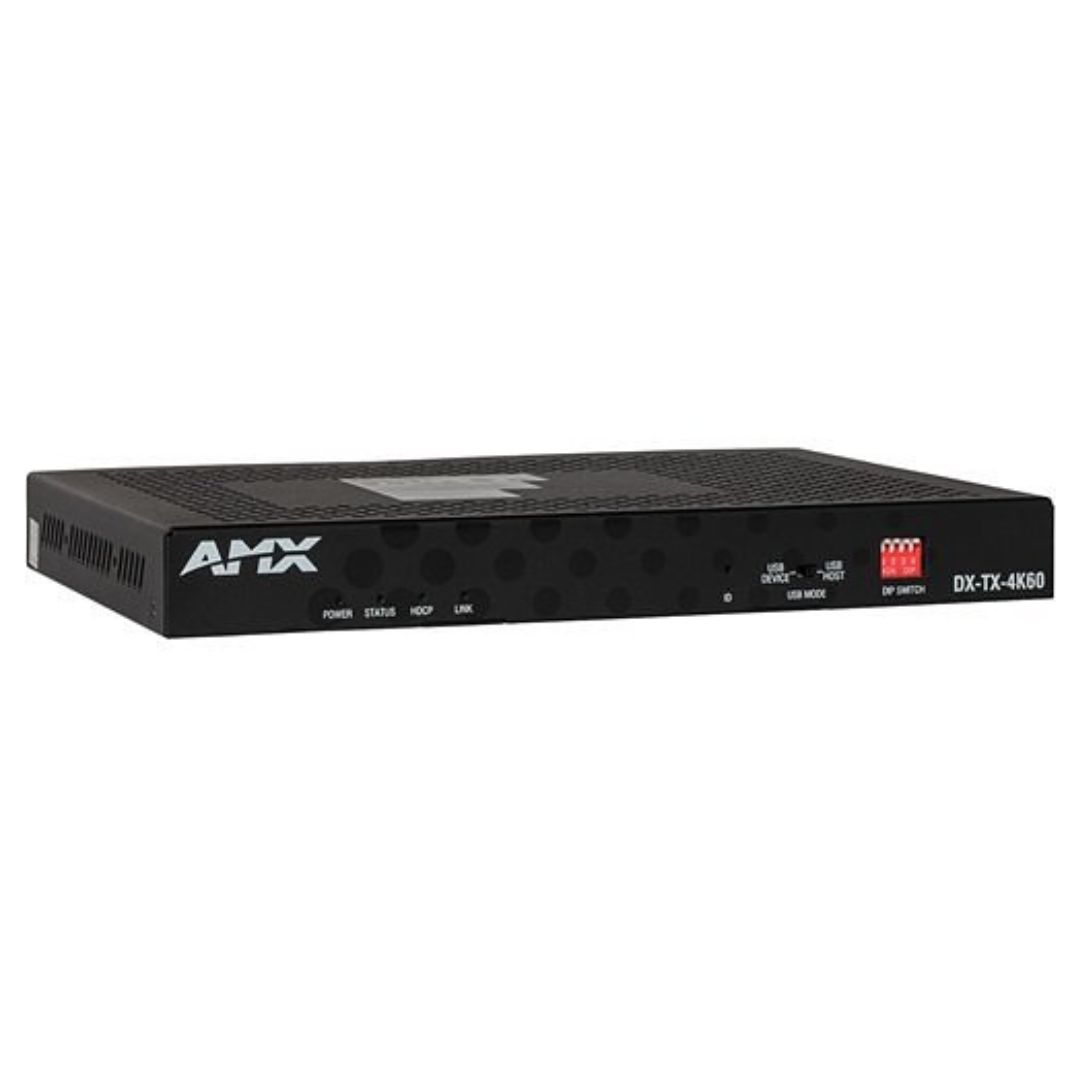

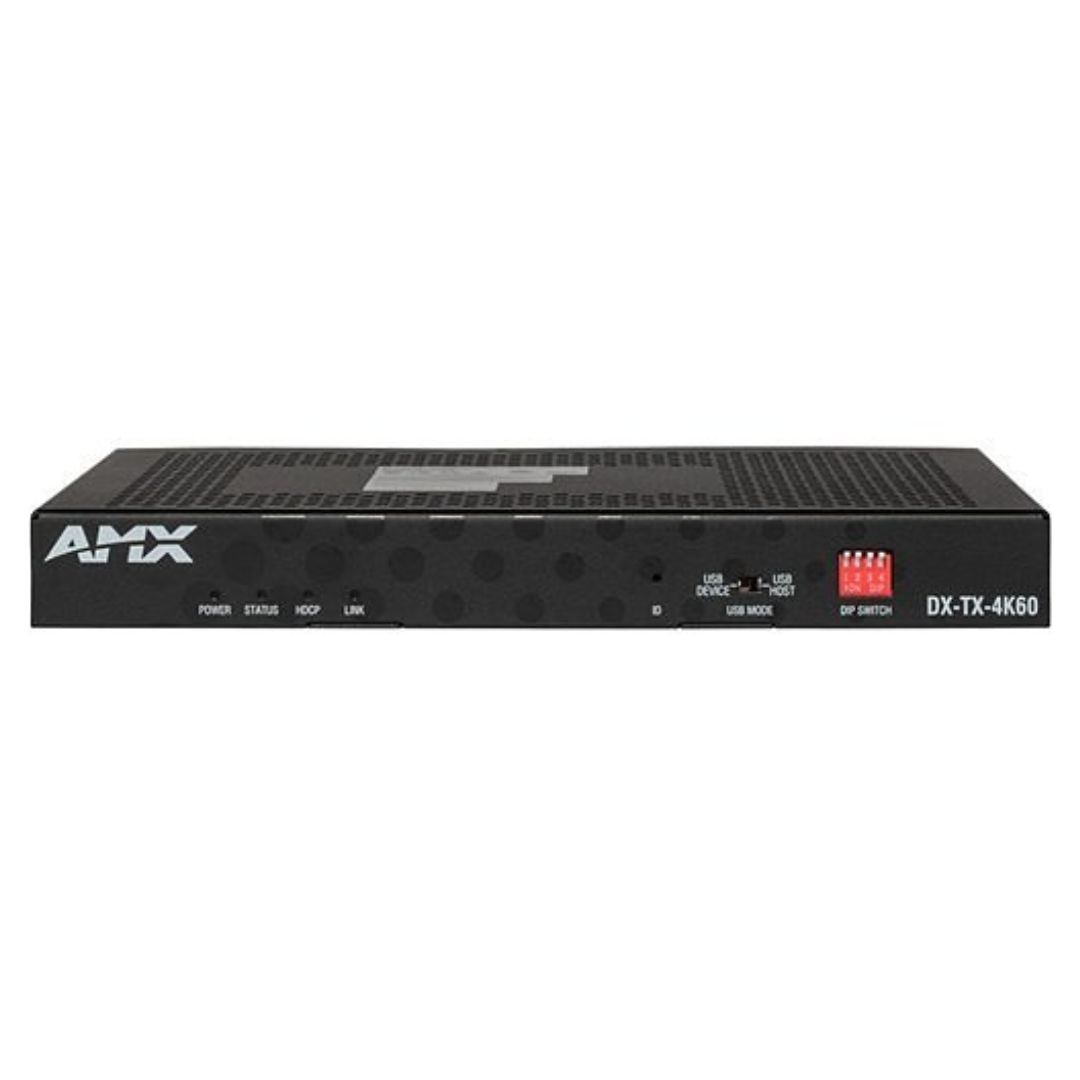

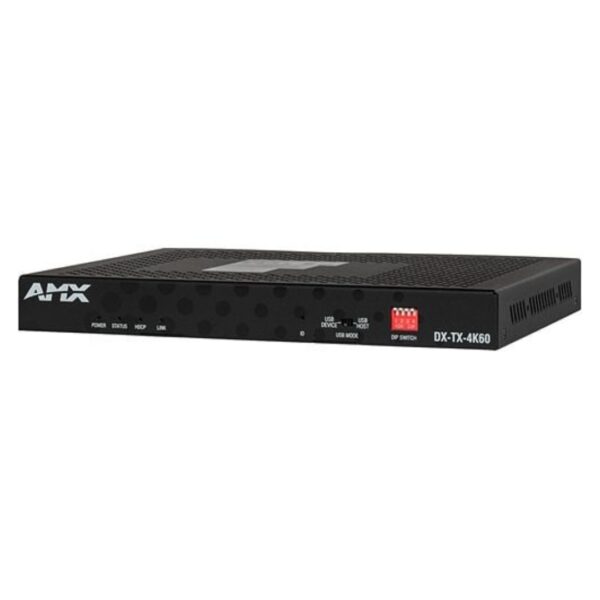

The AMX DXLink 4K60 HDMI Twisted Pair Transmitter Module delivers high-quality 4K60 4:4:4 video, audio, control, Ethernet, and USB 2.0 over a single shielded Cat6, Cat6A, or Cat7 twisted pair cable. Supporting HDMI 2.0 and HDCP 2.2, it ensures secure, end-to-end distribution of full 4K video with HDR10 and 36-bit Deep Color. Ideal for use with remote DXLink 4K60 Receiver Modules, Enova DGX DXLink 4K60 Input Boards, or Enova DVX-4K All-In-One Presentation Switchers, this module simplifies installation by transmitting all signals over one cable, reducing costs compared to dual-cable solutions. Commonly used in universities, corporate environments, and healthcare facilities, it supports critical viewing applications and integrates USB 2.0 data transmission for devices like web cameras and storage. HDBaseT compatibility allows integration with third-party HDBaseT displays.

Whatsapp Us!

Enquiry Now

**AMX DXLink 4K60 HDMI Twisted Pair Transmitter Module Overview**

The AMX DXLink 4K60 HDMI Twisted Pair Transmitter Module delivers an advanced solution for transporting high-resolution video and audio signals over long distances using a single twisted pair cable. Designed for superior performance, this transmitter supports 4K60 4:4:4 video, ensuring full fidelity and exceptional clarity for the most demanding applications. It seamlessly integrates with HDMI 2.0 and HDCP 2.2 standards, making it compatible with the latest source devices and displays.

**Key Features**

– **4K60 4:4:4 Video Support**: The DXLink Transmitter Module transmits pristine 4K60 4:4:4 video across long distances, ideal for applications where high video quality is essential. Whether for critical viewing environments like operation centers or collaborative learning setups, it delivers unparalleled clarity.

– **High Dynamic Range (HDR) and Deep Color**: Supporting HDR10 and 36-bit Deep Color, this transmitter enhances video with vivid colors and increased contrast, providing a more dynamic and lifelike viewing experience.

– **HDCP 2.2 Compliance**: The module supports HDCP 2.2, enabling it to work seamlessly with the latest video standards and ensuring compatibility with protected content.

– **HDBaseT Compatibility**: Fully compliant with the HDBaseT standard, the transmitter is compatible with third-party HDBaseT displays, offering flexibility in system design.

– **USB 2.0 Support**: Transmit high-speed USB 2.0 data from devices such as web cameras and storage devices without the need for separate cables, streamlining installation and reducing clutter.

– **Single-Cable Convenience**: The DXLink module transmits video, audio, control signals, and Ethernet over a single shielded Cat6, Cat6A, or Cat7 twisted pair cable. This simplifies installation and reduces costs compared to solutions requiring multiple cables.

**Common Applications**

The DXLink 4K60 HDMI Twisted Pair Transmitter Module is versatile and suited for various settings where high-quality video distribution is crucial:

– **Educational Institutions**: In colleges and universities, it distributes audio and video throughout or between classrooms to support collaborative or distributed learning environments.

– **Corporate Environments**: Ideal for corporate settings, it facilitates the distribution of high-resolution video and audio within meeting spaces, enhancing presentations and communications.

– **Healthcare Facilities**: Perfect for training rooms, simulation rooms, or labs, the module ensures the delivery of clear and detailed video for educational and operational purposes.

**Installation and Compatibility**

The transmitter integrates effortlessly with AMX systems, including the Enova DGX DXLink 4K60 Twisted Pair Input Boards and Enova DVX-4K All-In-One Presentation Switchers. Its built-in control ports allow for the management of source devices, and the ICSLan port provides an IP network access point.

**Conclusion**

The AMX DXLink 4K60 HDMI Twisted Pair Transmitter Module is an advanced and efficient solution for high-resolution video distribution. With support for 4K60 4:4:4, HDR, and USB 2.0, it meets the needs of demanding environments while simplifying installation with its single-cable design. Whether for educational, corporate, or healthcare applications, it provides a reliable and high-quality solution for transporting video, audio, and control signals.

Specifications

**General Specifications:**
– **Dimensions (HWD):** 1″ x 8 2/3″ x 6 1/3″ (2.54 cm x 22.0 cm x 16.0 cm)
– **Weight:** Approx. 2.0 lb (0.9 kg)
– **Mounting Options:** Compatible with all V Style versatile mounting options, including rack, surface, or pole

**Transport Layer:**
– **Throughput (Max):** 10.2 Gbps

**Compatible AMX Products:**
– Enova DGX 800/1600/3200/6400 Digital Media Switchers
– Enova DVX-2265-4K, DVX-3266-4K All-In-One Presentation Switchers
– DX-RX-4K60 as a point-to-point solution
– PS-POE-AT-TC High Power PoE Injector
– PDXL-2 Power over DXLink Controller

**Twisted Pair Cable:**
– **Type:** Shielded Cat6, Cat6A, and Cat7
– **Length:**
– Up to 100m (328 ft) for shielded Cat6A and Cat7
– Up to 70m (229 ft) for shielded Cat6

**Airflow:**
– Convection (openings on top of case)

**Regulatory Compliance:**
– FCC
– CE EN 55032
– CE EN 55035
– CE EN 61000-3
– ICES-003
– IEC 62368-1
– UL 62368-1
– UL 60950-1
– RCM
– RoHS/REACH/WEEE Compliance

**Included Accessories:**
– Desktop power supply with power cord
– 1 IR emitter
– 1 IR receiver
– 4 rubber feet
– 2 mounting brackets with screws

**Optional Accessories:**
– AVB-VSTYLE-SURFACE-MNT, V Style Module Surface Mount (FG1010-722)
– AVB-VSTYLE-RMK-1U, V Style Module Tray (FG1010-720)
– AVB-VSTYLE-RMK-FILL-1U, V Style Module Tray with Fill Plates (FG1010-721)
– AVB-VSTYLE-POLE-MNT, V Style Module Pole Mount (FG1010-723)
– CC-NIRC, NetLinx IR Emitter Cable (FG10-000-11)
– IR03, External IR Receiver Module (FG-IR03)
– PS-POE-AT-TC High Power PoE Injector (FG423-84)
– PDXL-2 Power over DXLink Controller (FG1090-170)

**Power Supply:**
– **External, Included:** Desktop power supply with power cord
– **AC Power:** 100-240 VAC single phase, 50-60 Hz, 0.6 A @ 115 VAC max
– **Power Consumption (Max):**
– Local 12V supplied: 12.5 W
– Power over DXLink supplied: 13.0 W
– **External, Optional:** Power can also be supplied by DXLink Power sourcing devices:
– Enova DGX 800/1600/3200/6400 Digital Media Switcher (with a DXLink 4K60 Twisted Pair Input Board installed)
– Enova DVX-4K All-In-One Presentation Switcher (DVX-3266-4K or DVX-2265-4K)
– PS-POE-AT-TC High Power PoE Injector
– PDXL-2 Power over DXLink Controller

**Note:** AMX only supports the use of approved Power over DXLink solutions. Third-party power supplies or non-compatible standard PoE solutions may damage the DXLink equipment.
