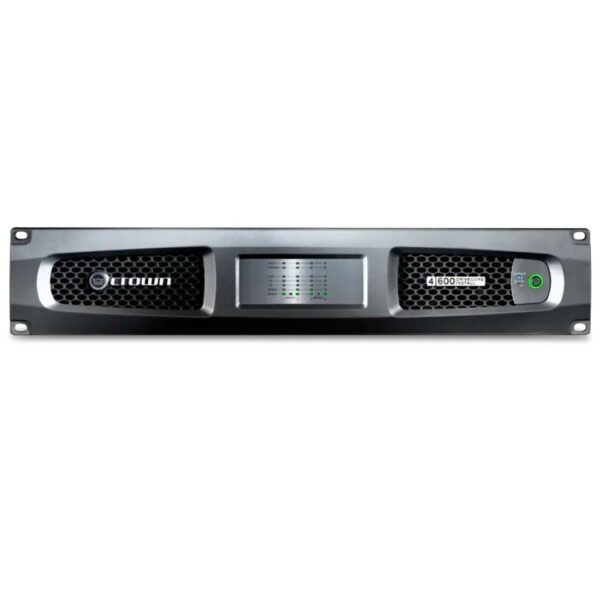

The DriveCore™ Install series amplifiers represent a comprehensive line of high-performance solutions crafted for demanding installation environments. Leveraging proprietary DriveCore technology, the DCi Series amplifiers are designed, engineered, and manufactured to meet the highest industry standards. These amplifiers offer advanced features and unparalleled flexibility, making them ideal for modern installed sound applications. Known for their versatility, compact size, and energy efficiency, DCi Series amplifiers uphold Crown’s longstanding tradition of leadership in professional and commercial power amplifier technology.

**Output Power and Configuration Options:**

The DCi Series amplifiers provide a range of output power options to suit diverse installation needs. In dual mode with all channels driven, the models include:

– **2|300**: Delivers 150W per channel at 2Ω, 300W at 4Ω, 300W at 8Ω, and 150W at 16Ω. The 70Vrms and 100Vrms outputs are also 300W.
– **4|300**: Offers 150W per channel at 2Ω, 300W at 4Ω, 300W at 8Ω, and 150W at 16Ω, with 70Vrms and 100Vrms outputs also providing 300W.
– **8|300**: Provides 150W per channel at 2Ω, 300W at 4Ω, 300W at 8Ω, and 150W at 16Ω, along with 70Vrms and 100Vrms outputs at 300W.
– **2|600**: Outputs 300W per channel at 2Ω, 600W at 4Ω, 600W at 8Ω, and 300W at 16Ω. The 70Vrms and 100Vrms outputs are 600W.
– **4|600**: Delivers 300W per channel at 2Ω, 600W at 4Ω, 600W at 8Ω, and 300W at 16Ω, with 70Vrms and 100Vrms outputs at 600W.
– **8|600**: Provides 300W per channel at 2Ω, 600W at 4Ω, 600W at 8Ω, and 300W at 16Ω, with 70Vrms and 100Vrms outputs also at 600W.
– **2|1250**: Outputs 1250W per channel at 2Ω, 1250W at 4Ω, 1250W at 8Ω, and 625W at 16Ω. The 70Vrms and 100Vrms outputs are 1250W.

In bridge mono mode with all channels driven:

– **2|300**: Produces 300W at 4Ω, 600W at 8Ω, and 600W at 16Ω. The 140Vrms and 200Vrms outputs also reach 600W.
– **4|300**: Delivers 300W at 4Ω, 600W at 8Ω, and 600W at 16Ω, with 140Vrms and 200Vrms outputs at 600W.
– **8|300**: Provides 300W at 4Ω, 600W at 8Ω, and 600W at 16Ω, with 140Vrms and 200Vrms outputs at 600W.
– **2|600**: Outputs 600W at 4Ω, 1200W at 8Ω, and 1200W at 16Ω. The 140Vrms and 200Vrms outputs are 1200W.
– **4|600**: Delivers 600W at 4Ω, 1200W at 8Ω, and 1200W at 16Ω, with 140Vrms and 200Vrms outputs at 1200W.
– **8|600**: Produces 600W at 4Ω, 1200W at 8Ω, and 1200W at 16Ω, with 140Vrms and 200Vrms outputs at 1200W.
– **2|1250**: Provides 2500W at 4Ω, 2500W at 8Ω, and 2500W at 16Ω, with 140Vrms and 200Vrms outputs at 2500W.

**Key Features:**

1. **True Rack Density:** The DCi Series amplifiers are available in power points of 300W, 600W, or 1250W across 2-/4-/8-channel configurations, all housed within a compact 2U form factor. This design enhances installation flexibility and reduces operational costs by fitting more channels into a smaller rack space.

2. **Direct Drive Constant Voltage:** These amplifiers support 70Vrms and 100Vrms amplification without the need for a step-up transformer, allowing for the use of smaller gauge wiring and improving overall audio quality and efficiency.

3. **Channel Independent Hi-Z/Low-Z Selection:** Each channel can be configured for either low-Z mode to drive one or two speakers or high-Z mode to drive multiple speakers, offering enhanced design flexibility and efficient power distribution.

4. **Bridgeable Channel Pairs:** The DCi Series amplifiers feature bridgeable channels even in 100Vrms mode, making them suitable for high-power applications like subwoofers.

5. **Remote On/Off Interface:** The amplifier can be integrated into a control system for convenient power management, reducing power consumption when not in use.

6. **Efficient Cooling Design:** Internal cooling fans are strategically placed to direct airflow to the most heat-generating components, optimizing cooling efficiency while minimizing energy waste and noise.

7. **Advanced Power Factor Correction (PFC) Universal Power Supply:** This power supply delivers exceptional efficiency under varying conditions, minimizing power dissipation and reducing heat generation in rack environments.

The DCi Series amplifiers embody Crown’s commitment to high-performance, reliability, and innovation, continuing to set the standard for professional and commercial power amplifier technology.
