PR-WP-412

Categories: , ,

Perfect HDMI 2.0 4K60 4:4:4 Video – Ideal for users running critical viewing applications such as casinos and courtrooms that can benefit from processing the full fidelity of their displays
High Dynamic Range (HDR) Support – Support HDR10 in Matrix Mode
HDCP 2.2 – Supports the latest video standards to realize the full capabilities of HDMI interfaces
Multi-windowing Processing – Up to four simultaneous, freely scalable windows can be processed using the 4×1+1 multi-windowing mode
Seamless Switching – Ensures uninterrupted screen transitions during source selections when switching in 4×2 matrix mode
Audio Pass-Through & De-Embedding – Empowers independent audio source selection and routing to HDMI outputs in all modes
H-Control Upgradable – Ready to support H-control in the future by firmware re-writing via USB

Whatsapp Us!
Enquiry Now

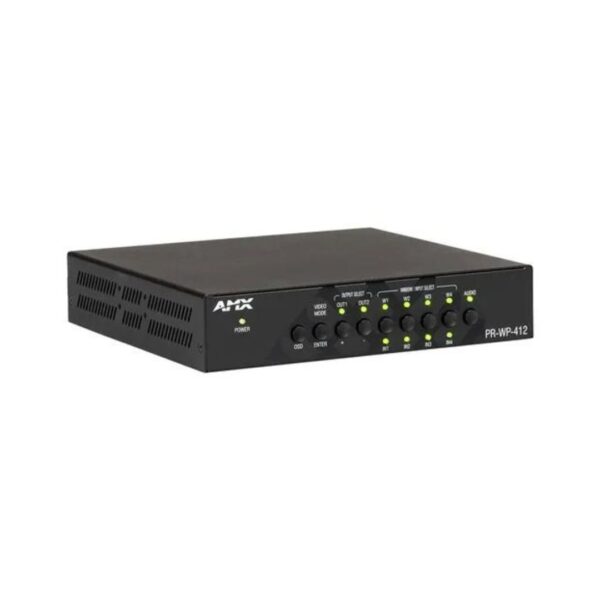

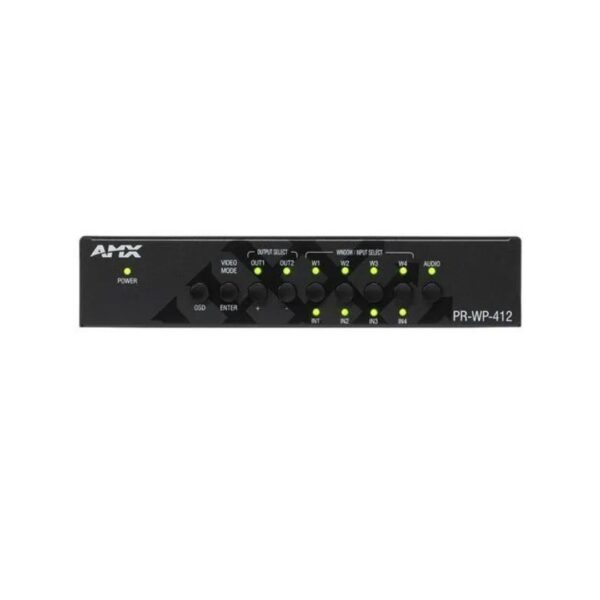

The PR-WP-412 is an incredibly versatile and powerful AV solution that is both a fully featured 4×1+1 windowing processor with mirrored outputs and a 4×2 seamless matrix switcher. When configured as a windowing processor, the four video inputs can be arranged in any configuration and composited into a single output. In matrix switcher mode, the PR-WP-412 acts as a 4×2 seamless video switcher. It is loaded with best-in-class features, including truly seamless switching, class-leading 4K60 4:4:4 video quality, integrated audio breakaway, and extreme control flexibility with an open control API, a simple-to-manage HTML5 web interface, and front panel controls.

When paired with the AMX UVC1-4K USB Capture Device, the PR-WP-412 is an ideal complement to software video conferencing systems such as Zoom and Teams as it enables multiple sources to be shared at the same time. With an open API and full 4K60 support, the PR-WP-412 can be leveraged to enable creative solutions to unique design requirements in all types of applications

Specifications

Video Inputs (4) HDMI; supports HDMI/HDCP
Video Outputs (2) HDMI; supports HDMI/HDCP
Video Resolution Support Various up to 4096 x 2160@ 60 Hz – Reference Data Sheet for Specific Resolution Support
Audio Inputs Embedded audio on HDMI; supports 2 CH L-PCM de-embedding and pass-through of PCM 2-Channel, PCM Multi-Channel, Dolby Digital, Dolby Digital Plus, Dolby Atmos, Dolby TrueHD, DTS, & DTS HD MA
Audio Outputs (2) 3 Position 3.5mm pluggable Phoenix Terminal Block; supports Unbalanced Analog Stereo

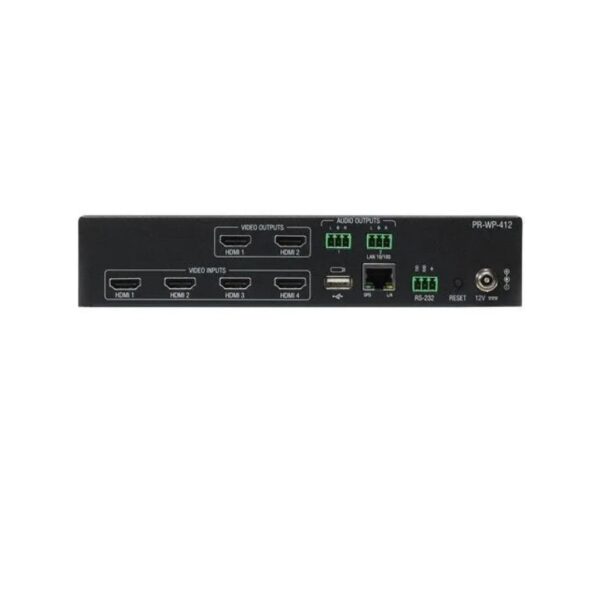

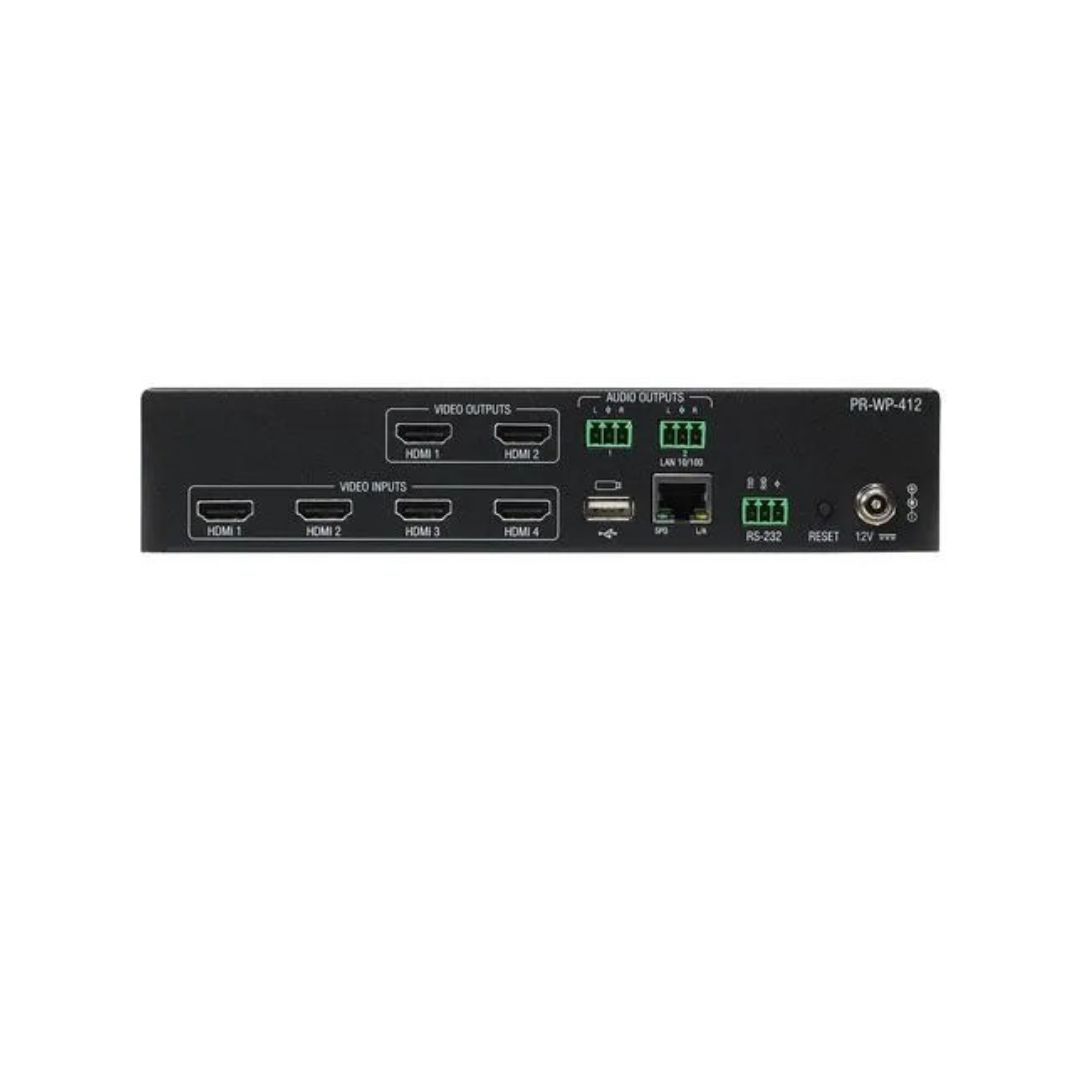

Ports 12V Power: (1) Screw Down Locking Power Connector; HDMI Input: (4) HDMI Type A Socket; HDMI Output: (2) HDMI Type A Socket; Ethernet: (1) RJ45 Connector; Analog Stereo Output: (2) 3 Position 3.5mm pluggable Phoenix Terminal Block; RS-232: (1) 3 Position 3.5 mm pluggable Phoenix Terminal Block; Program Port: (1) USB Type A Socket
Environmental Temperature (Operating): 32°F (0°C) to 122°F (50°C)
Temperature (Storage): -4°F (-20°C) to 140°F (60°C)
Humidity (Operating): 10% to 90% RH (non-condensing)
Humidity (Storage): 10% to 90% RH (non-condensing)
Thermal Dissipation (Typical): 77.1 BTU/hr
Regulatory Compliance FCC Part 15 Class B
EN 55032
EN 55035
CB IEC/EN 60950
CB IEC/EN 62368-1
UL 62368-1
RoHS/REACH
EMC (Australia)
EMC (Canada)
EMC (UKCA)
Prop65
Dimensions (H x W x D) 1.73” x 8.4” x 8.07” (4.4 cm x 21.35 cm x 20.5 cm)
Weight 3.1 lbs (1.4 kg)
FG Numbers AMX-PR-WP-412
